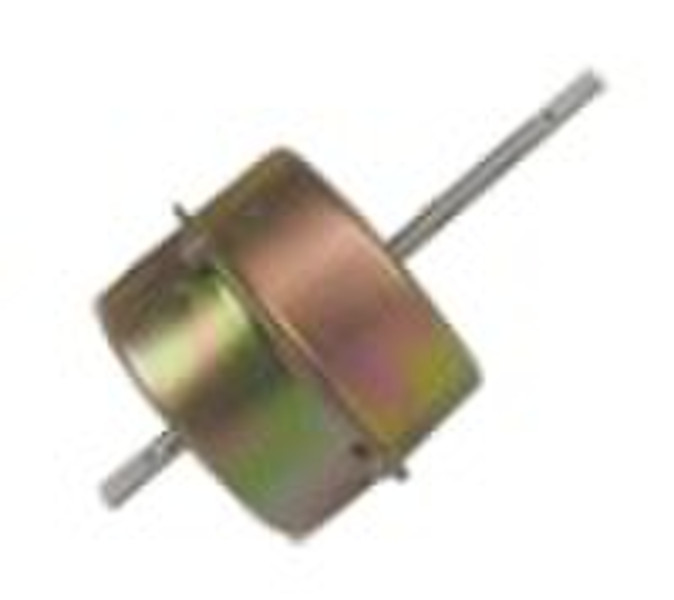

Flattering Machine Motor

Flattering Machine Motor/ Motor for Shoes Brushing: Product characteristic IP43. The B level insulation makes the E level, the F level 100V/240V 50/60HZ. High grade electromagnetic wire QZ-2 may make the UL line. High quality silicon steel plate DW470,may make DR510. The highly effective vacuum soaks the paint. Ultra stable ball bearing CHINA NSK. May make the quality reliable domestic product bearing. S1 continuous working system. Balanced rotor. Product merit: Waterproofing,dustproof,anticorrosion. Low noise. Vibrates slightly. Energy conservation. The service life is long. The serviceability is strong. TECHNICAL DATA: Model Power (w) Voltage (V) Electricity A Revolution (RPM) Capacitance (μF/450V) Fules position Note XTD-30 30 220/50 0.4 1100 3 1 may make 100V XTD-35 35 220/50 0.5 1100 4 1 may make 100V XTD-40 40 220/50 0.6 1100 4 1 may make 100V XTD-50 50 220/50 0.65 1100 5 1 may make 100V XTD-70 70 220/50 0.7 1100 5 1 may make 100V XTD-80 80 220/50 0.85 1100 6 1 may make 100V Note The concrete electrical machinery power and the rotational speed may the root tree customer request have custom-made the product. Model Installs size(mm) Shaft extend size A B E C D XTD94 85-250 20-28 20-120 8 20-110 XTD79 85-220 20-24 20-100 8 20-100 Note C E and D may the root tree customer request production The concrete electrical machinery revolution axis may the root tree customer have custom-made the product.
